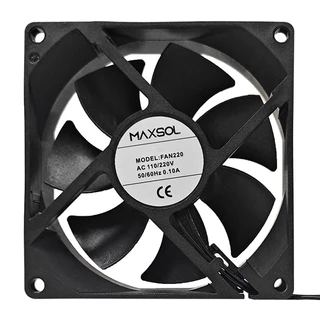

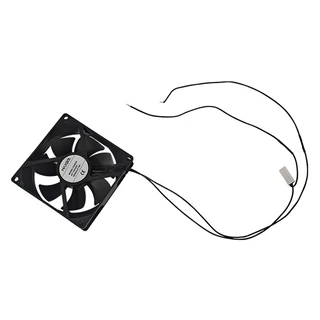

Model: FAN220

220V 92mm Temperature-Controlled AC Cooling Fan

High-performance 92mm 220V AC fan with temperature control. Features 3000 RPM, 58 CFM, and ball bearings. Ideal for industrial cooling systems and OEM usage.

Key features

220V Temperature-Controlled Cooling Fan
Dimensions: 92X92X25mm
Operating voltage range: 110V-220V
Rated current:0.01A ± 10%
Rated input power:2.7W ± 10%
Rated speed :3000RPM ± 10%
Operating temperature: -10℃~ + 70℃
Environment humidity :10%(RH)45℃ for 24hours , 98%(RH)45℃ for 24hours
Acoustic Noise: ≤ 38.05 dBA (Maximum)

Send Inquiry By Emailsales@maxsol-tech.com

DatasheetDownload View

Specification

Model: FAN220
Bearing Type: Two Ball Bearing
Rated Voltage: 220V
Operating Voltage Range: 110V – 220V
Starting Voltage / Condition: ≤110V, starts when temperature reaches 40℃
Rated Current: 0.01A ±10%
Rated Input Power: 2.7W ±10%
Rated Speed: 3000 RPM ±10%
Maximum Air Flow: ≥58.01 CFM
Maximum Static Air Pressure: ≥3.53 mm-H₂O
Operating Temperature: -10℃ ~ +70℃
Storage Temperature: -30℃ ~ +85℃
Insulation Resistance: ≥10 MΩ at 500V DC (between housing and lead wires)
Dielectric Strength: 500 VAC, 1 minute, 1 mA (between housing and lead wires)
Acoustic Sound Level: ≤38.05 dBA (Max)
Dimensions (L × W × H): 92 × 92 × 25 mm
Weight: 75 g
