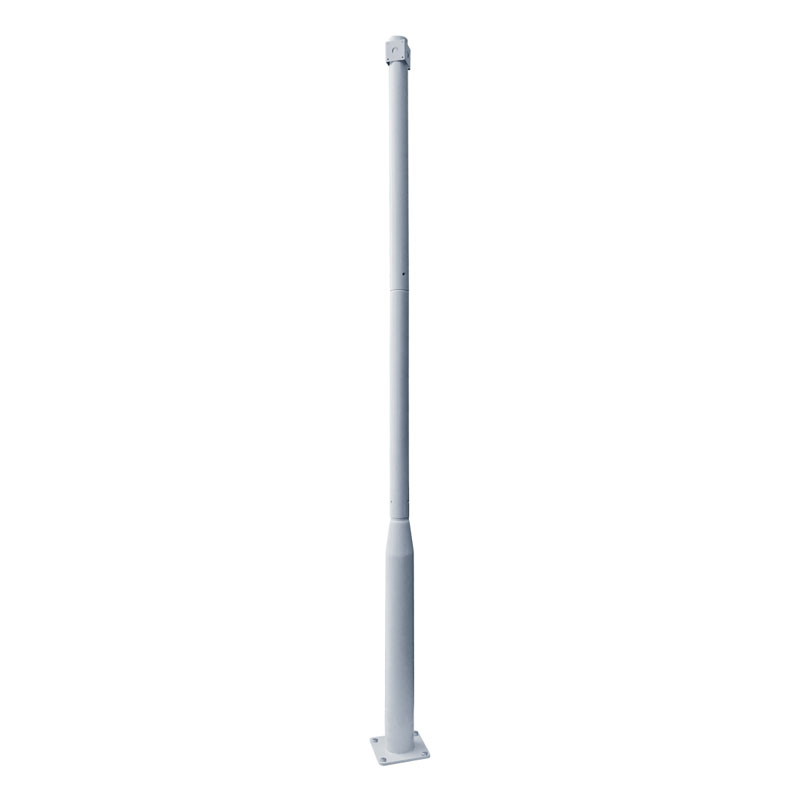

3 Meter Modular Monitoring Poles
ModelPL01
Overview
3m Modular Monitoring Pole With Ø76–114mm Galvanized Steel, Weather-Resistant Design For Surveillance, Traffic, And Industrial Use.
Features
- 3 Meter Modular Monitoring Poles
- Size: Top Ø76 mm × Bottom Ø114 mm × 1.5 mm thickness
- Hot-dip galvanized steel, corrosion-resistant for outdoor use
- Durable coated surface, resistant to wind, sun, and harsh weather
- Suitable for surveillance, traffic, and industrial applications
PL01
Specification
Specification
- Model
- PL01
- Light pole material
- Q235 steel (galvanized)
- Material thickness
- 1.5mm
- Top diameter
- 76*1.5mm
- Bottom diameter
- 114*1.5mm
- Weight
- 13KG
- Color
- White
- Accessories
- Pole
Lightning rod
Combined buried root - Packaging
- 105*24*23cm
- Optional chassis bracket
- 60*60*10cm
