Model: PS1802G

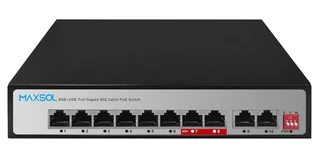

8-Port Long-Range Gigabit Unmanaged PoE Switch, 120W
8-port long-range Gigabit unmanaged PoE switch with 2 Gigabit uplinks, 120W PoE budget, 300m Extend mode, VLAN isolation, and AI watchdog.
Key features
- 8 Gigabit PoE ports and 2 Gigabit RJ45 uplink ports
- Ports 1–8 support IEEE 802.3af/at; ports 7–8 support IEEE 802.3bt up to 60W
- E/V/W DIP modes provide 300m Extend, VLAN isolation, and AI PoE watchdog functions
- 120W total PoE power budget with built-in AC power supply
- Automatic 10/100/1000Mbps negotiation and auto MDI/MDI-X
- Desktop or wall-mounted installation
Specification
Interfaces
- Model
- PS1802G
- Fixed Ports
- 8 × 10/100/1000Base-T/TX PoE ports (data/power); 2 × 10/100/1000Base-T/TX RJ45 uplink ports (data)
- PoE Standard
- Ports 1–8 support IEEE 802.3af/at; ports 7–8 support IEEE 802.3af/at/bt, up to 60W per port
- Network Protocols
- IEEE 802.3 10BASE-T; IEEE 802.3i 10Base-T; IEEE 802.3x; IEEE 802.3u 100Base-TX; IEEE 802.3ab 1000Base-T
- DIP Switch Modes
E – Extend Mode: up to 300m transmission with automatic per-port speed adjustment (limited to 10Mbps);
V – VLAN Mode: isolates PoE ports while retaining uplink communication;
W – Watchdog Mode: detects unresponsive IP cameras and restarts PoE power automatically
- Ethernet Port Features
- 10/100/1000Base-T(X) auto-detection, full/half duplex, auto MDI/MDI-X
Switch Performance
- Switching Capacity
- 20Gbps
- Forwarding Rate
- 14.88Mpps
- MAC Address Table
- 4K
- Buffer Memory
- 4M
- Forwarding Mode
- Store and forward
- Twisted Pair Transmission
- 10BASE-T: Cat5 UTP up to 300m; 100BASE-TX and 1000BASE-T: Cat5 or later UTP up to 100m
- Power Supply Pin
- 1/2(+), 3/6(-)
- Power Supply
- 120W, AC 100–240V, 50–60Hz
- Power Consumption
- Standby <2W; full load <120W
Physical Characteristics
- LED Indicators
- PWR (green); Link/Act for ports 1–10 (green)
- Operating Temperature / Humidity
- -20°C to +55°C; 5%–90% RH, non-condensing
- Storage Temperature / Humidity
- -40°C to +75°C; 5%–95% RH, non-condensing
- Installation
- Desktop or wall-mounted
- Protection
- IEC 61000-4-2 ESD: ±8kV contact, ±15kV air; IEC 61000-4-5 surge: power CM ±4kV / DM ±2kV, ports ±4kV
- Dimensions
- 220 × 145 × 44mm
- Net / Gross Weight
- <0.8kg / <1.5kg
- Protection Level
- IP30
Package Contents
- Switch
- 1 pc
- Power cord
- 1 pc
- Quick installation guide
- 1 pc
Interfaces
- Model
- PS1802G
- Fixed Ports
- 8 × 10/100/1000Base-T/TX PoE ports (data/power); 2 × 10/100/1000Base-T/TX RJ45 uplink ports (data)
- PoE Standard
- Ports 1–8 support IEEE 802.3af/at; ports 7–8 support IEEE 802.3af/at/bt, up to 60W per port
- Network Protocols
- IEEE 802.3 10BASE-T; IEEE 802.3i 10Base-T; IEEE 802.3x; IEEE 802.3u 100Base-TX; IEEE 802.3ab 1000Base-T
- DIP Switch Modes
E – Extend Mode: up to 300m transmission with automatic per-port speed adjustment (limited to 10Mbps);
V – VLAN Mode: isolates PoE ports while retaining uplink communication;
W – Watchdog Mode: detects unresponsive IP cameras and restarts PoE power automatically
- Ethernet Port Features
- 10/100/1000Base-T(X) auto-detection, full/half duplex, auto MDI/MDI-X
Switch Performance
- Switching Capacity
- 20Gbps
- Forwarding Rate
- 14.88Mpps
- MAC Address Table
- 4K
- Buffer Memory
- 4M
- Forwarding Mode
- Store and forward
- Twisted Pair Transmission
- 10BASE-T: Cat5 UTP up to 300m; 100BASE-TX and 1000BASE-T: Cat5 or later UTP up to 100m
- Power Supply Pin
- 1/2(+), 3/6(-)
- Power Supply
- 120W, AC 100–240V, 50–60Hz
- Power Consumption
- Standby <2W; full load <120W
Physical Characteristics
- LED Indicators
- PWR (green); Link/Act for ports 1–10 (green)
- Operating Temperature / Humidity
- -20°C to +55°C; 5%–90% RH, non-condensing
- Storage Temperature / Humidity
- -40°C to +75°C; 5%–95% RH, non-condensing
- Installation
- Desktop or wall-mounted
- Protection
- IEC 61000-4-2 ESD: ±8kV contact, ±15kV air; IEC 61000-4-5 surge: power CM ±4kV / DM ±2kV, ports ±4kV
- Dimensions
- 220 × 145 × 44mm
- Net / Gross Weight
- <0.8kg / <1.5kg
- Protection Level
- IP30
Package Contents
- Switch
- 1 pc
- Power cord
- 1 pc
- Quick installation guide
- 1 pc
